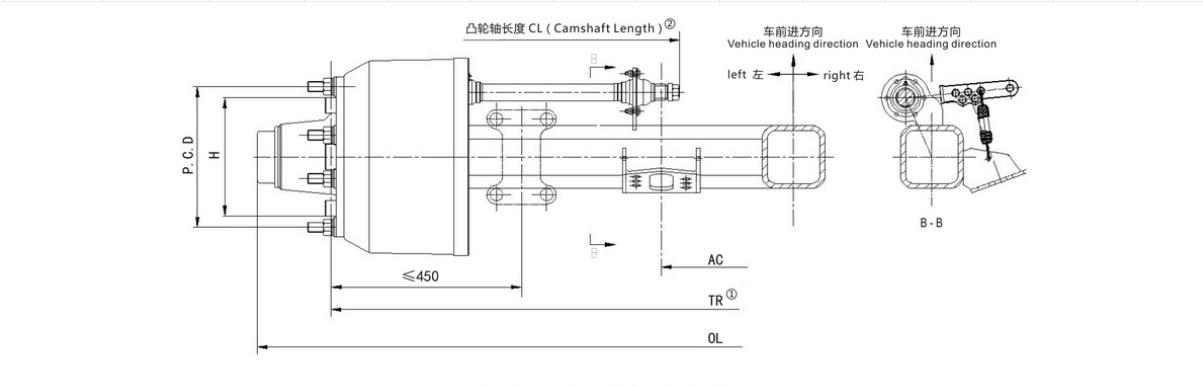

| Part No. | Max Capacity | Track | Brake Size (mm) | Wheel Fixing | Bearing | Total Length | |||||
| (kg) | Axle Beam | TR | Center Distance of Chamber | Wheel | OL(mm) | ||||||
| (mm) | (mm) | AC(mm) | Stud (mm) | P.C.D | H | ||||||
| (mm) | (mm) | ||||||||||
| BTGA-001 | 12000 | □150 | 1840 | 421 | S420*180 | 10-M22*1.5 | φ335 | φ281 | 7.5V-20 | 33118 / 33213 | ~2160 |
| BTGA-002 | 12000 | □150 | 1840 | 379 | S420*200 | 10-M22*1.5 | φ335 | φ281 | 7.5V-20 | 33118 / 33213 | ~2160 |
| BTGA-003 | 14000 | □150 | 1840 | 427 | S420*200 | 10-M22*1.5 | φ335 | φ281 | 8.0V-20 | 32219 / 33215 | ~2190 |
| BTGA-004 | 16000 | □150 | 1840 | 243 | S420*200 | 10-M22*1.5 | φ335 | φ281 | 8.5V-20 | 32222 / 32314 | ~2250 |
| BTGA-005 | 16000 | □150 | 2120 | 640 | S420*220 | 10-M22*1.5 | φ335 | φ281 | 8.5V-20 | 32222 / 32314 | ~2515 |
| BTGA-006 | 18000 | □150 | 1840 | 262 | S420*200 | 10-M22*1.5 | φ335 | φ281 | 8.5V-20 | 32222 / 32314 | ~2245 |
| BTGA-007 | 18000 | □150 | 2120 | 640 | S420*220 | 10-M22*1.5 | φ335 | φ281 | 8.5V-20 | 32222 / 32314 | ~2510 |
① Optional track (TR) within 2040mm.
② Optional camshaft length based on AC≥223mm.
