| Part No. | Max Capacity | Track | Brake Size (mm) | Wheel Fixing | Bearing | Total Length | ||||||
| (kg) | Axle Beam | TR | Center Distance of Chamber | Wheel | OL(mm) | |||||||
| (mm) | (mm) | AC(mm) | Stud (mm) | P.C.D | H | Inner Bearing | Outer Bearing | |||||
| (mm) | (mm) | |||||||||||
| BTLA-001 | 11500 | φ127 | 1816 | 382 | S311*190 | 10-M22*1.5 | φ225 | φ176 | 6,15-15 |
HM218248 /10 |
HM212049 /10 | ~2110 |
| BTLA-002 | 11500 | φ127 | 1970 | 440 | S311*190 | 10-M22*1.5 | φ225 | φ176 | 6,15-15 | HM218248 /10 | HM212049 /10 | ~2275 |

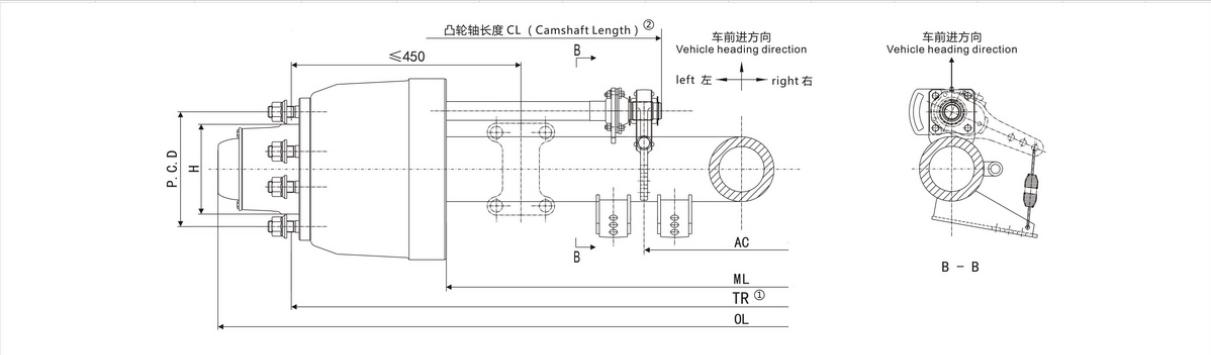

① Optional track (TR) within 2750mm.
② Optional camshaft length based on AC≥223mm.
